General Electric U13B |
 |
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
| New: 27 July 2007 |

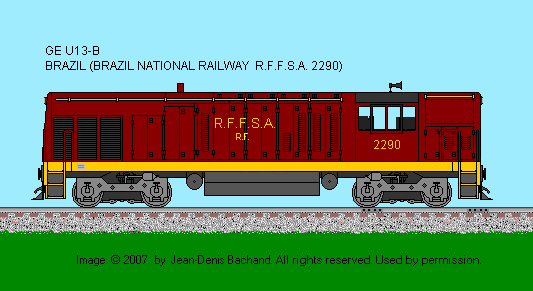

Drawing by: Jean-Denis Bachand |
| - |
| Engine Builder: Cooper Bessemer |
Engine: 4-cycle Model FVBL-8T 7FDL-8T |
| Bore & Stroke |
9" X 10.5" |
| RPM (Maximum / Minimum) |
1050 / 650 |
| Main Generator: GE - GT601 |
Horsepower: 1300 (1400) |
| Gear Ratio: 93:18 |
Speed: 64 mph |
| 4-Wheel |
Configuration: B-B |
| Traction Motor Blowers: GE NC330 |
Number: 2 |
| Weight: 120,000 lbs |
Traction Motors: GE 761 (Four) |
| Tractive Effort (starting) 91,650 lbs @ 25% |
Tractive Effort (continuous): 92,500 lbs @ 10.7 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: GE GY27 |
Alternator: GMG-175 |
| Air Brake: Westinghouse |
Model: 26LA |
| Air Compressor: Westinghouse |
Model: 2CDC |
| Quantity Built: Unknown
|
Dates: 1960 to 1963 for Phase 1, phase 2 not built |
| - |
- |
| Exterior Dimensions
| U13B |
| Total Length |
38'-04" (46'-04.5") |
| Wheel Diameter |
36" |
| Truck Wheel Base |
7'-04" |
| Height to Hood Top |
12'-00" |
| Height to Top Cab |
11'-10" |
| Cab Width |
9'-00" |
| Hood Width |
8'-10" |
| Top of Walkway |
9'-04.5" |
| Walkway Width |
4'-00" |
| Center Bolster |
21'-10" |
| Leading Edge Front Truck to Front Pilot |
0'-06" |
| Distance between Truck Centers |
28'-08" |
| Trailing Edge Rear Truck to Rear Pilot |
0'-06" |
| Leading Edge Front Truck to Trailing Edge Rear Truck |
39'-11" |
| Minimum Turning Radious |
21 degrees |
| -
| - |
| Fuel Oil: 500
| Lubricating Oil: 160 |
| Engine Cooling Water: 120
| Sand Capacity: 12 cu. ft. |
| Options: |
Reference Sources:
- GE Advanced Generation, 1989 by James W. Kerr
- GE Locomotives Vols 1 & 2, 1981, by James W. Kerr
- Car & Locomotive Encyclopedia, 1984, Simmons & Boardman Publications
- Moden Locomotive Handbook, 1979, Railway Fuel & Operating Officers Assn.
- Diesel & Electric Locomotives Specifications, 1981, by F. K. Hudson
- GE Export U-Series Model Evolution by Steve Plmano
|
